Copper Plating: Part #1

Copper Plating: Part #1

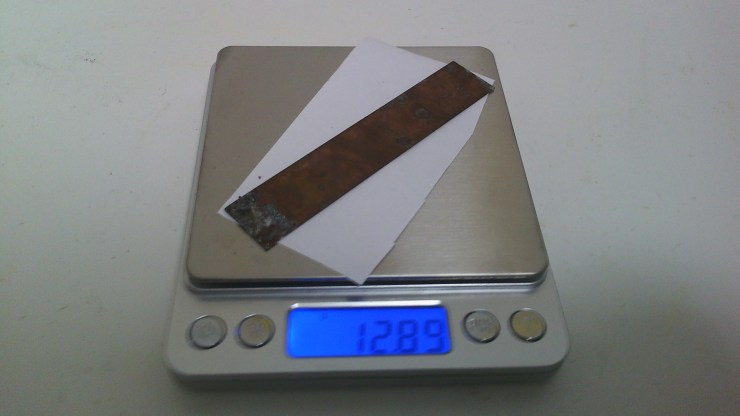

IMG_20140101_070301

I’ve never used a copper stick in one of my experiments, I found out that I’m good at plating, which is what we’re going to be doing in this post. You probably wondering why my copper is a green, it’s because of chemical reactions with the elements. Just as iron that is left unprotected in the open air will corrode and form a flaky orange-red outer layer.

IMG_20140101_070953

First, warm up some distilled water, which is what I’m doing above. Heated up until about 45°C. Don’t go too hot with the water because it’ll accelerate the plating and form crystals, which is what we don’t want.

To be honest, I’m not actually following any instructions though, so I’m not sure if this is going to work.

IMG_20140101_071209

Mix the distilled water with scoops of copper sulphate, I don’t know how much to put in there, so I put about… 100 grams I guess.

IMG_20140101_071603

What I’m going to be plating is this iron nail. I connect the nail to (-) and the copper to (+). What’s happening now is simple: the copper ions (+) is charging to the metal. Copper (which are positively charged) are attracted to the negatively charged iron electrode and slowly deposit on it—producing a thin layer of copper plate. The electrolyte just helps ions to move around.

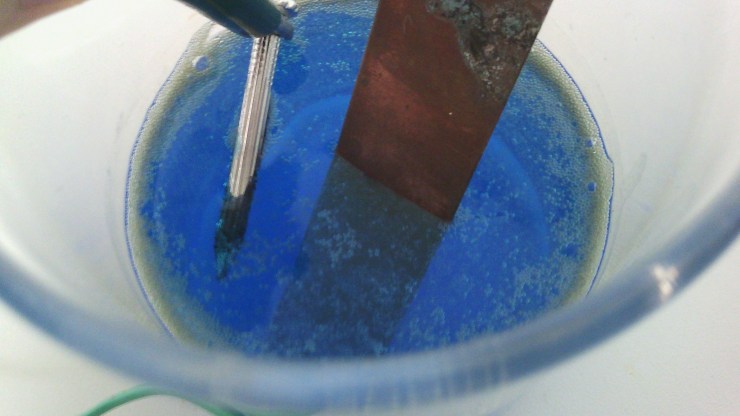

IMG_20140101_071630

I shook the nail around because the copper will only go to one side.

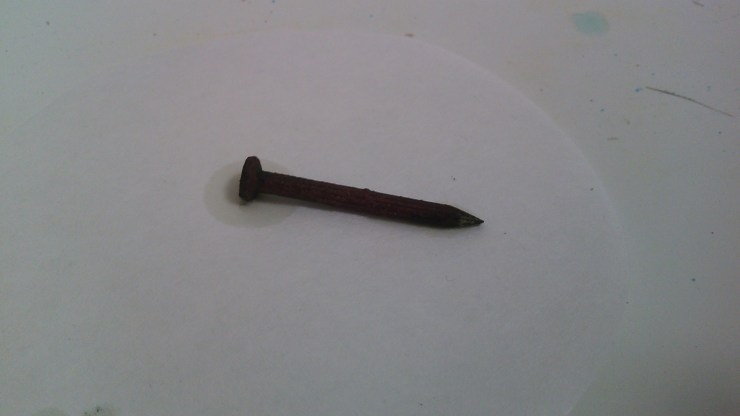

IMG_20140101_071847

Now the nail is all covered in copper but…..

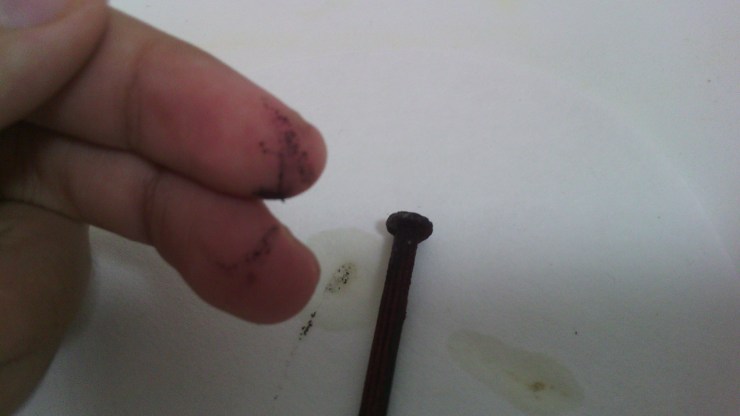

IMG_20140101_072143

The copper is falling off, easily…

I tried with a stick that metal and some aluminum mixed in it. But it still falls off.

The common problem is the electrolyte, as said above it accelerates the plating and makes crystals, but the water is about 35°C. Or the other problem is too much copper sulfate…

Can you tell me what the problem is? If you know, comment down below↓

7 Comments »

  1. This is a cool experiment and it does work – just doesn’t stick.
    I’m not sure how to get the plating better? Perhaps everything needs to be more pure? eg your iron nail and your copper plate may not be 100% pure?
    In industrial electroplating I assume they’d use a more powerful current too.
    Well this is Science for you – lots of experimenting and Sometimes it goes just as expected – but most often not!
